Why You May Actually Need a Firewall

Today, a client sent us this article: Why you don't need a firewall. Now of course, we sell an appliance that includes a firewall, so I admit bias in this matter. On the other hand, my sysadmin side loves the idea of less devices to manage. Sadly, this editorial's justifications lack logic and reason.

The author, Roger A. Grimes, first argues that software is less hackable today than it was in the past, thereby reducing the need for a firewall. This couldn't be further from the truth. Every single security bulletin published by Microsoft in the last year contains one or more remote code execution vulnerabilities. As long as new code is written, new bugs will inadvertently be created. I doubt Mr. Grimes is a proponent of leaving servers unpatched, but if that was his argument, a firewall that blocks access to a server's vulnerable services from outside the network could certainly prevent them from being exploited. Even if you do aggressively patch your servers, each month's security bulletin informs you of the exploits your servers and workstations have been vulnerable to up until the moment they're patched.

Mr. Grimes' next argument is that 'firewalls tend to be horribly managed,' as 'almost no one reads the logs or responds to the events recorded.' This is clearly an administrator problem. Although some devices are easier to use than others, I know of at least one vendor that works hard to make the task of remediating network alerts as simple as possible.

But he continues: "I find so many firewalls with "ANY ANY" rules that defang the protection, it doesn't faze me anymore." This is indeed a useless rule set. The AccessEnfocer blocks all inbound traffic by default, and with three clicks, blocks all outbound traffic as well. This has been our recommended practice since inception of the company, and our customers know we have articles on our Online Portal that explain in simple terms how to lock down a network using a 'default deny' rule without hurting users or blocking critical network traffic.

His next argument against ports 80 and 443 being too open is really just a continuation of the last one. Any decent firewall will help you lock down these ports, and more. Between a web filter that proxies all web traffic, to an intrusion prevention engine that inspects and blocks it, to a content filter that blocks known malware sites as well as certain types of downloads, a UTM device can reduce the attack surface significantly. Of course, no system is perfect, which is why security experts recommend multiple layers of security, and of course, continuous signature/definition updates.

Mr. Grimes' own examples even work against him. "The recent Remote Desktop Protocol exploit is a case in point: Microsoft recommended that affected clients block RDP port 3389 at perimeter firewalls as one of their protective work-arounds. But everyone I know, instead, installed the emergency patch," he writes. However, the flaw was first discovered in May 2011. If administrators had previously blocked port 3389, their servers would never have even been publicly vulnerable.

I once worked for a university IT department that assigned public IP addresses via DHCP to every internal computer. When deploying new machines, we would first bring them online on a dedicated, firewalled network in order for them to receive their patches and security policies. We once accidentally connected a batch of new laptops to our WiFi network by accident. Shortly thereafter, we received a call from the Security Office saying we had a bunch of IP's on our network spewing out spam and malware. The total time that had elapsed between putting these laptops on an un-firewalled network and receiving that call: five minutes.

Running OpenBSD in a VirtualBox VM full-screen at 1920x1080 Resolution

VirtualBox and OpenBSD have progressed quite a bit since our last post on the subject. With current versions of the software, which at the time of this writing are OpenBSD 5.0 and VirtualBox 4.1.x, no special tweaking is required to install the OS, boot the VM, or even start the X Window System. However, if you'd like to run X full-screen on a 1920x1080 monitor, a minor bit of tweaking is required:

1. Increase the VM's Video Memory allocation to at least 32MB in its settings.
2. Set the new VESA mode in VirtualBox. The syntax is:
       VBoxManage setextradata [VM-name] CustomVideoMode1 [WidthxHeightxBitDepth]
   Depending on your OS, you may need to type the full path to the VBoxManage command. On my computer, the exact command I typed was:
       /Applications/VirtualBox.app/Contents/MacOS/VBoxManage setextradata taco
       CustomVideoMode1 1920x1080x16
   This command provides no confirmation output, but you can verify it by running:
       VBoxManage getextradata [VM-name] CustomVideoMode1
   which gave me:
       Value: 1920x1080x16
3. Edit your xorg.conf file to add the following lines under the "Monitor" section:
       HorizSync     31-80
       VertRefresh   30-100
4. Set the DefaultDepth to "16" under the "Screen" section by adding the bottom line:
       Section "Screen"
           Identifier   "Screen0"
           Device       "Card0"
           Monitor      "Monitor0"
           DefaultDepth 16
5. Towards the bottom of the "Screen" section you'll find the definition for the 16-bit mode. Define your resolution here:
       SubSection "Display"
           Viewport     0 0
           Depth        16
           Modes        "1920x1080"
       EndSubSection

That's it. Run startx and you'll have a large window with scrollbars, so simply press your Host+F key and you'll have a fullscreen desktop with no scrolling.

Unfortunately, I wasn't able to get 24-bit working at 1920x1080 in VirtualBox. 24-bit does work for lower resolutions (up to 1280x1024 on my machine), which makes me think this is a VirtualBox limitation.

Getting Started with Cyphertite Remote Backup

Cyphertite is a new remote backup tool from Conformal Systems that, in many ways, is similar to other popular services such as Backblaze, Mozy, Carbonite, and JungleDisk. Linux and FreeBSD users will find similarities with tarsnap. It's a bit of a crowded market, no? However, there are four attributes that set apart Cyphertite:

1. Storage that's cheaper than AWS at $0.10/GB for storage (no charge for bandwidth)
2. The amazing combination of compression, deduplication, and client-side encryption
3. Strong cryptography (White Paper - PDF)
4. An open source client open for anyone to review

Since cyphertite may not yet be well-known in the general IT industry, I thought it would be helpful to explain exactly what it is and how it works. This post actually grew out of my notes for myself as I began setting it up and using it internally. Since the Windows and Mac OS X clients aren't ready yet, this howto guide assumes a Unix or Linux server (I used OpenBSD). Even if you only need to back up Windows files, you can install Services for NFS for Windows Server, set up OpenBSD on an old spare box or VM and mount the NFS share on it.

Also, please note that cyphertite has a wiki, live chat and email support from Conformal, a forum, and man pages. Although it took me some time to grok everything, I had no problem getting help thanks to these resources. The developers were even kind enough to review this guide for accuracy. If you're not familiar with Conformal, you may also want to check out some of their other initiatives.

How it Works

Cyphertite behaves similar to tar in that it archives files and uses similar flags. However, instead of operating on tarballs, you work with "ctfiles" which are not actually file archives, but more like a representation of the files that have been encrypted and archived remotely. During the backup process, cyphertite:

1. Breaks up every file into 256KB chunks.
2. Records the chunk's SHA-1 hash in a local sqlite database.
3. Compresses the chunk.
4. Encrypts the chunk using AES-XTS.
5. Records the encrypted chunk's SHA-1 hash in the localdb.
6. Records metadata in a ctfile about the file being archived, including its path, permissions, and list of hashes that belong to the chunks that make it up.
7. Archives the chunks at the remote backup destination.

If a chunk's hash pair matches a previously uploaded chunk, it is not uploaded again, thus implementing "chunk-level" deduplication. Another benefit of the hashing is file integrity verification. So while the database is a collection of hashes of the chunks of your files that have been backed up, the ctfiles are necessary to recreate the files from chunks when you're performing a restore. The ctfiles end in .ct and are generally stored remotely. However, since they can grow to a significant size, they are cached locally as well, in what is referred to as the "metadata cache directory." It is possible to disable 'remote mode', in which the ctfiles aren't stored on the remote server. This is called 'local mode', and the ctfiles will not be backed up, so if you lose them, you will not be able to recover your data. In addition, you won't have the ability to cull (delete) old data. Since the ctfiles are encrypted with the same algorithm used to encrypt the chunks, Conformal doesn't have access to this metadata, so there is virtually no downside remote mode. When performing operations on a ctfile, the full path of the ctfile is not passed, simply the name of it. Cyphertite checks its .conf file for the path to the cache directory, or else uses the remote ctfile.

Getting Started

First, download and install cyphertite, and complete initial setup. Now, let's run a full backup of our /home directory:

  ct -cvRf allhomefiles_1.ct /home The ctfile will be generated and stored in the cache directory, which will be prepended with a timestamp, called a 'tag', so it will look like 20120330-143853-allhomefiles_1.ct. If you have the following line in your cyphertite.conf file: ctfile_remote_auto_differential = 1 Running the same exact command subsequently will create a new incremental ctfile with the same basic file name, but with a new tag, and with a vastly smaller file size. I recommend this for typical usage, as you will save yourself a lot of processing time by only calculating hashes and writing metadata for new or changed files. The new ctfile will thus only reference these new or changed files, and only chunks from these would be uploaded. Running the following command will force a new full or "Level 0" backup, which then creates a new full ctfile: ct -0vRf allhomefiles_1.ct /home

However, since you are still referencing the original ctfile, cyphertite will reference metadata from it and all subsequent incremental ctfiles, and will only archive new chunks. The new ctfile, however, will contain all the metadata, not an incremental amount.

Think of this as a full backup, and that cyphertite was smart enough to upload only what it needs. Remember that remotely, data is stored just as encrypted chunks, not in any sort of file or path structure. The new level 0 ctfile will reference all the chunks it needs to recreate every file you wanted to back up. So when the original level 0 ctfile, and subsequent incremental ctfiles, are deleted, and the data is culled, everything associated with this new level 0 ctfile will remain intact. Let's list all remote ctfiles (the -m flag stands for 'remote'): ct -mt You can manually delete a ctfile (I'll show how this can be automated shortly). To remove a remote ctfile, check the output from the above command for the exact filename, and type: ct -mef 20120330-143853-allhomefiles_1.ct Note that the -e flag stands for 'erase'. You can then delete the locally cached ctfile as well. To remove all the chunks of data associated with the deleted ctfiles, that are not referenced by any other ctfiles, run: ctctl cull This will also cull anything that doesn't meet the parameters stored in the following options in cyphertite.conf: ctfile_max_differentials = 29 ctfile_cull_keep_days = 30 The first one, despite its name, will run 29 incremental backups, then force a level 0, then run 29 more incremental backups, etc. Assuming a daily job, it will run a full backup once a month, and incrementals in between. The second line will auto-delete old ctfiles for you after the specified time period, as well as their associated data (if unreferenced by other ctfiles). Our example above tells cyphertite to keep only 30 days worth of ctfiles and data.

With the above two options set, you can effectively run cyphertite from a single, repeated command, and it will create new level 0 ctfiles and cull your old data.

In general, you should schedule 'ctctl cull' to run about as often as you run level 0 backups. Culling is an 'expensive' operation as it must identify all the hashes of all the blocks to save. Since most data sets barely changes over time, and culling is a resource-intensive operation, it's usually worse to cull daily than, say, weekly or monthly.

Schedule It

Typical usage would be to run a regular incremental backup daily, with a level 0 backup monthly (configured by the ctfile_max_differentials option as noted above), and culling after the regular backup process is finished. Your crontab would look like this: # min hour DoM month DoW command 0 0 * * * ct -cvRf allhomefiles_1.ct /home # Daily incremental 0 12 1 * * ctctl cull # Monthly cull of old ctfiles 0 12 2 * * ctctl cull # Monthly cull of old data Make sure you run the backup command manually the first couple of times, so that you know how long the operation takes to complete, so that you can schedule the jobs in a way that they don't overlap. This is critical, as both cyphertite and cull need access to the database.

With the above schedule, as long as you have properly set ctfile_max_differentials and ctfile_cull_keep_days, you will have regular full and incremental backups and will automatically delete old data.

Restoring Data

To restore the entire contents of our /home folder from the most recent backup to the root directory: ct -C / -xf allhomefiles_1.ct One thing to note is that cyphertite mimics tar in its trailing-slash (un)awareness, unlike rsync. When archiving a directory, it matters not if you back up /home or /home/. Either way, it will include the parent directory, so keep this in mind when restoring. Thus I am restoring the /home backup to the root directory, so that I don't end up with /home/home/. Note that the above command will restore the latest version of all the files that have ever been archived using that ctfile, including the original level 0 and all subsequent incrementals, even if those user files were later deleted. If you want to restore only the files referenced in the most recent backup, and not the ones that had been deleted prior to it, ensure you have this option set in your cyphertite.conf: ctfile_differential_allfiles = 1 To restore a specific file (or set of files) from a particular date to a directory named 'recovered', we can operate on a tagged ctfile and use a regular expression or glob: ct -C recovered -xf 20120330-162629-allhomefiles_1.ct *important_file.xlsx The prepended * is necessary because glob matching is on the full path, so withhout it, the glob wouldn't match the full path.

If you don't remember the exact name of the file you want to recover, you can use the cyphertitefb command to enter a shell that will allow you to navigate through a virtual filesystem as stored in a ctfile, and restore just the files you need, using standard unix commands:

$ cyphertitefb allhomefiles_1.ct
ct_fb> cd /home/horace
ct_fb> ls
ct_fb> get important_file-new-version3.23-saved-final.xlsx
ct_fb> quit

The important file will have been copied to your local cyphertite server, where you can then present it back to the user.

I hope you have found this introduction to this amazing tool useful.

Update regarding delayed change to 'DNS Changer' servers

Yesterday, I wrote about actions we will be taking to protect our customers and their clients from the DNS Changer IPs. It turns out that at the eleventh hour, a judge extended the deadline to July 9, 2012. This means that everyone now has additional time to clean up any infected machines.

It also means that our temporary blacklisting of those IPs will probably not be effective due to unit reboots. So, we will once again blacklist those IPs on July 9, and I will send out another email reminder at that point as well.

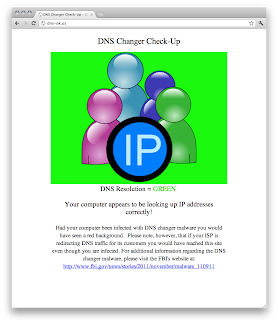

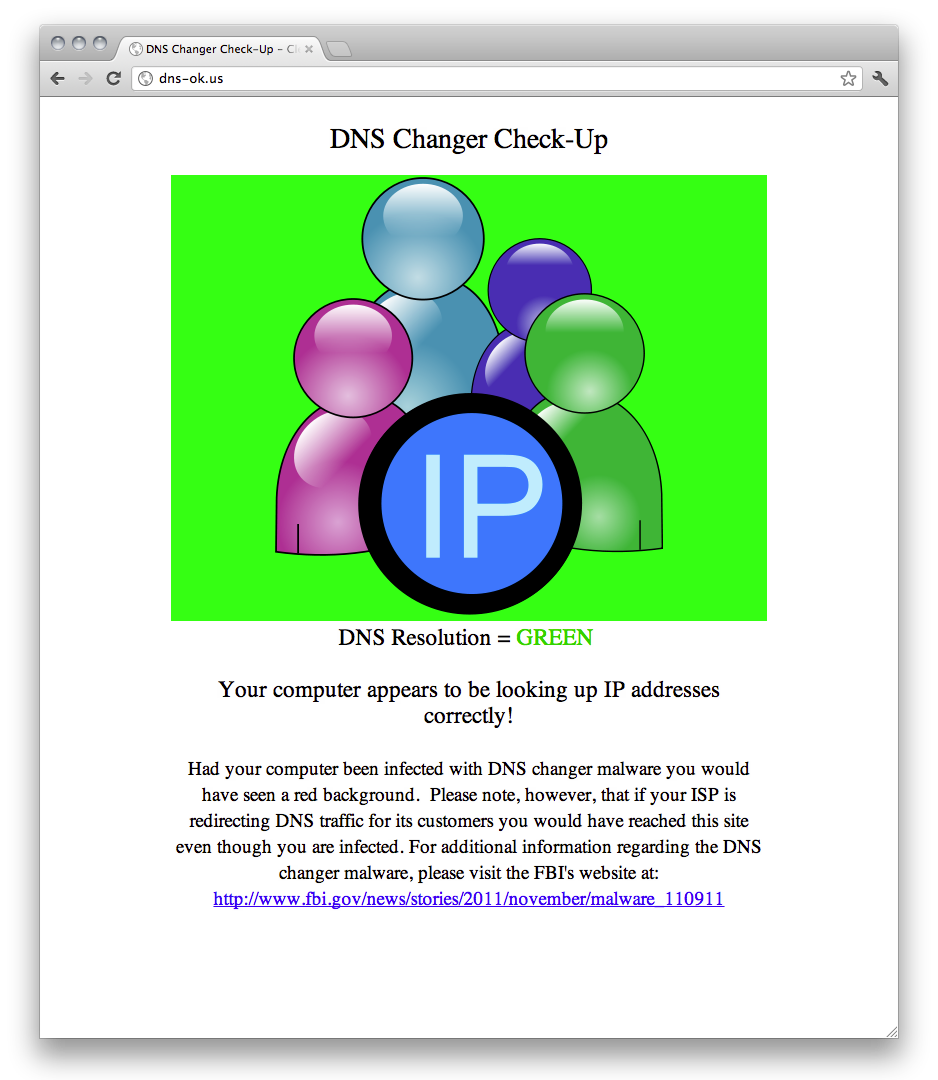

In the mean time, you can easily test to see if a machine has become infected by going to dns-ok.us. If it is, you'll see red:

This site is actually operated by the ISC and is rather clever in its implementation. All of the "bad IP" DNS servers resolve dns-ok.us to 38.68.193.97, while all regular DNS servers will resolve it to 38.68.193.96. Hopefully, your machine uses good DNS servers, and you'll see this instead:

You may want to even email this to your clients and ask them to run it on their machines, to help prevent a mad scurry when the DNS servers are shut down.

We'll provide more information about the IP blacklist in early July.

March 8 deadline for removal of DNS Changer malware looms

Just a quick note to remind you of the upcoming deadline to ensure all your computers are free of the DNS Changer trojans. This is a family of trojan horses that changes the DNS settings on both Windows and Macs to a known list of bad IPs. Due to a ruling by the US District Court for the Southern District of New York, on March 8, the Internet Systems Consortium will cease operating valid DNS servers on these IPs, which may then fall back into criminal hands. Therefore, any computers still pointing to these IPs for DNS may either stop receiving valid results, or will once again receive malicious results that could further harm the machine. It's been estimated that half of Fortune 500s are still infected with a DNS Changer trojan.

We are deploying a silent update to the AccessEnforcers that will intercept and block DNS requests to these IPs, by placing them on a temporary, hidden blacklist (this blacklist isn't visible in the GUI, but does not persist between reboots). If a user has been infected with a DNS Changer trojan, all domain-based Internet requests (e.g., web, email, IM, etc.) will simply time out. This event will also be recorded as a firewall policy violation on the Network Alerts page. The event will have a Destination IP from one of the following ranges:

77.67.83.1 to 77.67.83.254
85.255.112.1 to 85.255.127.254
67.210.0.1 to 67.210.15.254
93.188.160.1 to 93.188.167.254
213.109.64.1 to 213.109.79.254
64.28.176.1 to 64.28.191.254

(The above ranges are the exact IPs that will be blacklisted, by the way.)

This will not cause any additional downtime for your users, because at best, the IPs would have stopped resolving DNS queries, and at worst, they would have resolved to malicious sites. We hope you will find this update useful, but if you would prefer to opt out of this update for any of your AccessEnforcers, please email their exact serial numbers to support@calyptix.com and we will remove the IPs from the blacklist. Alternatively, you may simply reboot the device. This update is scheduled to be deployed in the early morning hours of Thursday, March 8, your local time.

As there have been many variants of the DNS Changer family of trojans, there isn't a single removal tool that I can direct you to. However, any recent version of Malwarebytes, Microsoft Malicious Software Removal Tool, or Norton Power Eraser should do the trick.

Good luck and happy hunting.

UPDATE: This has been delayed until July 9. Please see our latest post on the issue.

Critical Microsoft Patch for December 2011

Microsoft has released an emergency out-of-band (meaning done on a day other than Patch Tuesday, because of how important it is) on Thursday, December 29th.

http://technet.microsoft.com/en-us/security/bulletin/ms11-100

Please deploy.

Tax Savings with Selected Year End Purchases

Small businesses only have a limited number of days left in 2011 to realize significant tax savings on purchases of “eligible property” under Section 179 of the US Tax Code. Section 179 allows you to accelerate deprecation yielding substantial taxes savings for 2011. Of importance for the technology sector - special provisions for 2011 include certain software purchases!

What should I do? Buy and deploy your AccessEnforcer before January 1, 2012 and you may be eligible for huge tax savings this year. Ask us how to purchase a multi-year subscription plan and save even more.

Does this apply to me? To be certain, consult with your tax advisor and review the controlling guidance from the IRS. In general, you may be eligible for tax savings if your business meets the following criteria:

 Profitable operations in 2011
 Purchase “eligible property for business use” in 2011
 Acquired the eligible equipment by purchase
 Placed the equipment in service in 2011

The Basics of Section 179. For 2011 the IRS increased the amount allowed for Section 179 accelerated depreciation deduction to $ 500,000 and also included purchases on software. This means that your business could deduct the total cost of certain purchases on equipment one time rather than having to depreciate it over time. This can have huge tax advantages that could significantly reduce your tax obligation for 2011. Please note, this tax planning strategy may not be available to you in 2012 as the amount and composition of eligible purchases changes every year. In the past, Section 179 was referred to as the "SUV Tax Loophole" or the "Hummer Deduction" because many businesses have used this tax code to write-off the purchase of qualifying vehicles at the time (like SUV's and Hummers) - but that particular benefit of Section 179 has been severely reduced in recent years.

What is “eligible property”? To qualify for the section 179 deduction, your property must be one of the specified types of depreciable property approved by the IRS which includes tangible personal property and off-the-shelf computer software.

How Much Can You Deduct? Your section 179 deduction is generally the cost of the qualifying property. However, the total amount you can elect to deduct under section 179 is subject to a dollar limit and a business income limit. These limits apply to each taxpayer, not to each business. If you deduct only part of the cost of qualifying property as a section 179 deduction, you can generally depreciate the cost you do not deduct.

Where can I get more information? The IRS will publish guidance in early 2012. Until then, consult with your tax advisor and you can also review IRS guidance from 2010 and information from www.Section179.org.
